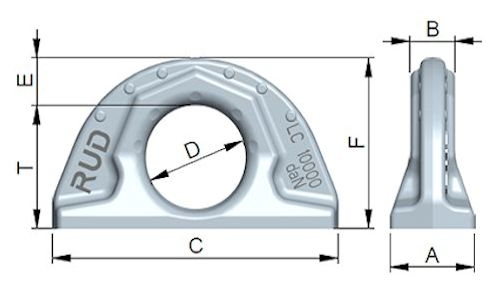

WLL

tons

Article

Nº

T

mm

A

mm

B

mm

C

mm

D

mm

E

mm

F

mm

Weigth

kg
3.2 7902667 42 30 16 100 35 16 57 0.45
6.4 7902668 59 41 23 137 50 21 80 1.15
10.0 7901722 72 51 27 172 60 28 99 2.26
20.0 7901723 95 70

38

228

85

 30 130 5.37



  Advantages:

  • suspension ring pivots 270 º

  • LC marking with daN

  • all sides fully loadable

  • phosphated surface

  • distance knobs at the weld-on block to achieve the necessary distance for the root weld

  • clamping spring works as a noise reduction

  • clamping spring holds the suspension ring in the requested position what allows simple hook on lashing hooks

  • welding should only be carried out according ISO 9606-1
