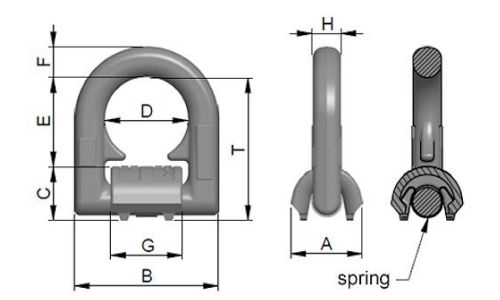

WLL

tons

Article

Nº

T

mm

A

mm

B

mm

C

mm

D

mm

E

mm

F

mm

G

mm

H

mm

Weigth

kg
3.0 7992225 65 33

66

25

38

 40 14 33 14 0.35
5.0 7904615 75 36 77 27 45 48 16 40 14 0.48
8.0 7904616 83 42

87

31

51

 52 18 46 16 0.80
13.4 7904617 117 61 115 44 67 73 24 60 22 1.90
20.0 7904618 126 75

129

55

67

 71 26.5 60 26 2.90

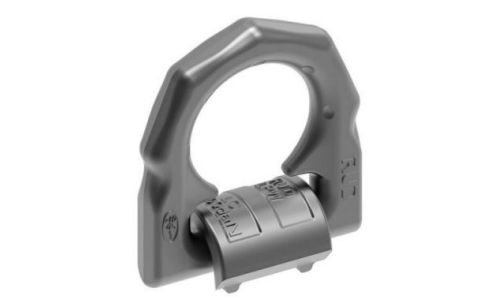

  Advantages:

  • suspension ring pivots 180º

  • LC marking with daN

  • all sides fully loadable

  • phosphated surface

  • distance knobs at the weld-on block to achieve the necessary distance for the root weld

  • clamping spring works as a noise reduction

  • clamping spring holds the suspension ring in the requested position what allows to hook on simple and easy

  • welding should only be carried out according ISO 9606-1
