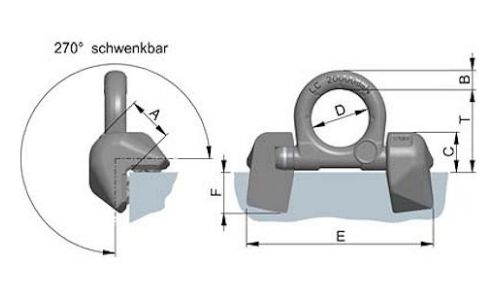

WLL

tons

Article

Nº

T

mm

A

mm

B

mm

C

mm

D

mm

E

mm

F

mm

Weigth

kg
8,0 7993056 65 32

14

28

48

 141 30 1,05
13,4 7903057 84 40 20 35 60 181 34 2,16
20,0 7903058 94 52

22

46

65

 212 46 4,40

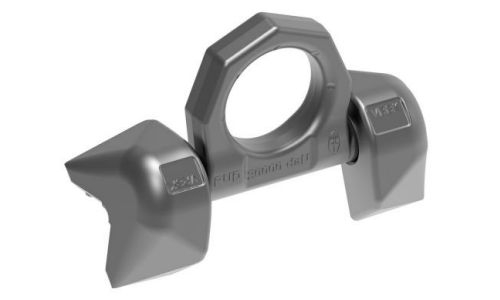

  Advantages:

  • suspension ring pivots 270º

  • LC marking with daN

  • all sides fully loadable

  • phosphated surface

  • distance knobs at the weld-on block to achieve the necessary distance for the root weld

  • clamping spring works as a noise reduction

  • clamping spring holds the suspension ring in the requested position what allows to hook on quick and easy

  • welding should only be carried out according ISO 9606-1
