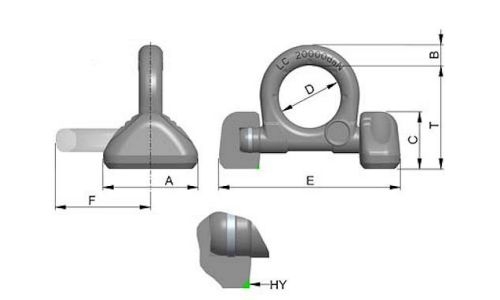

WLL

tons

Article

Nº

T

mm

A

mm

B

mm

C

mm

D

mm

E

mm

F

mm

Weigth

Kg
8.0 7999303 74 60

14

39

48

 132 69 0.94
1.,4 7909304 97 88 20 50 60 167 91 2.24
20.0 7909305 108 100

22

60

65

 191 100 3.72
32.0 7909306 140 130 30 72 90 276 134 8.23

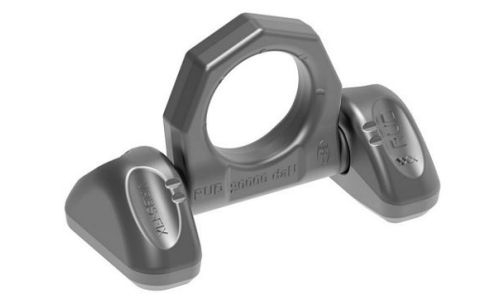

  Advantages:

  • fixed lashing ring

  • LC marking with daN

  • all sides fully loadable

  • phosphated surface

  • distance knobs at the weld-on block to achieve the necessary distance for the root weld

  • welding should only be carried out according ISO 9606-1
