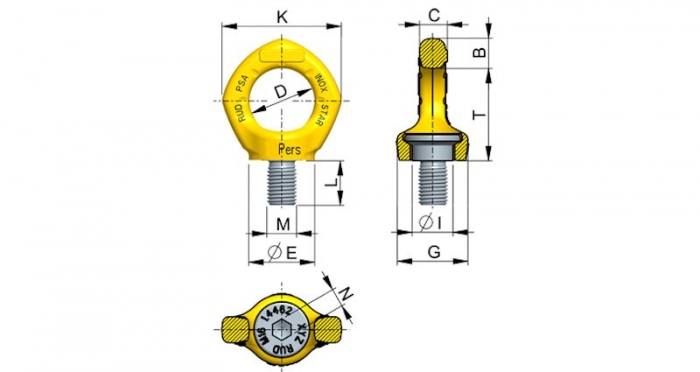

Bolt

wire

Bolt

length

Article

Nº

T

mm

B

mm

C

mm

D

mm

E

mm

G

mm

I

mm

K

mm

L

mm

N

mm

Weigth

kg
M12 18mm 7997097 43

14

12

30

 30 32 18 56 18 8 0.19
M12 50mm 7996757 43 14 12 30 30 32 18 56 50 8 0.22
M16 24mm 7900921 50 60 15 35 35 28 22 65 24 10 0.31
M16 50mm 7997820 50 60 15 35 35 28 22 65 50 10 0.40
M20 30mm 7904107 57 19 17 40 43 47 28 74 30 12 0.56
M20 60mm 7901252 57 19 17 40 43 47 28 74 60 12 0.60

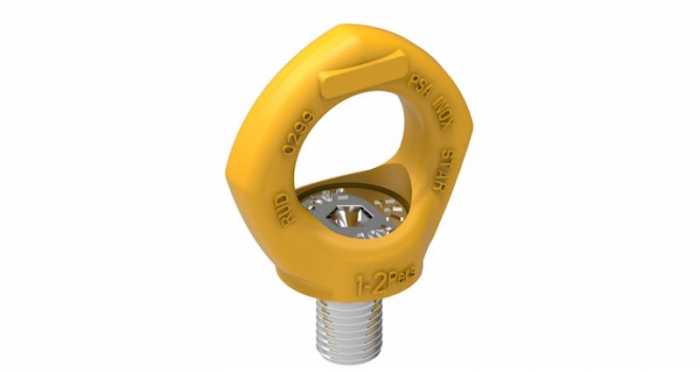

    Characteristics:

  • M12 = 1 person / M16 = 1 - 2 persons / M20 = 2 persons

  • rotating 360°

  • tested and certified by faculty PSA of DGUV Germany

  • non removable special bolt

  • according EN 795 - EN 50308 - OHSA 1926.502
