Bolt

wire

Bolt

 length

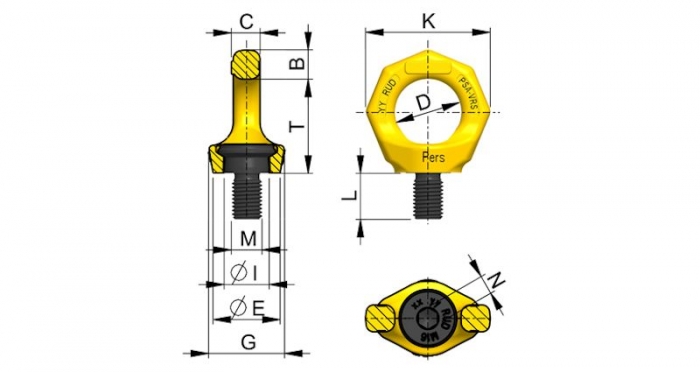

Article

Nº

T

mm

B

mm

C

mm

D

mm

E

mm

G

mm

I

mm

K

mm

L

mm

N

mm

Weigth

kg
M12 18mm 7997100 42

14

12

30

 30 34 20 56 18 8 0.20
M12 150mm 8600400 42 14 12 30 30 32 18 56 50 8 0.35
M16 24mm 7997854 50 16 15 35 35 40 24 65 24 10 0.33
M16 120mm 8600401 50 16 15 35 35 40 25 65 120 10 0.48
M20 30mm 7904107 57 19 17 40 43 47 28 74 30 12 0.56
M20 60mm 7901252 57 19 17 40 43 47 28 74 60 12 0.60

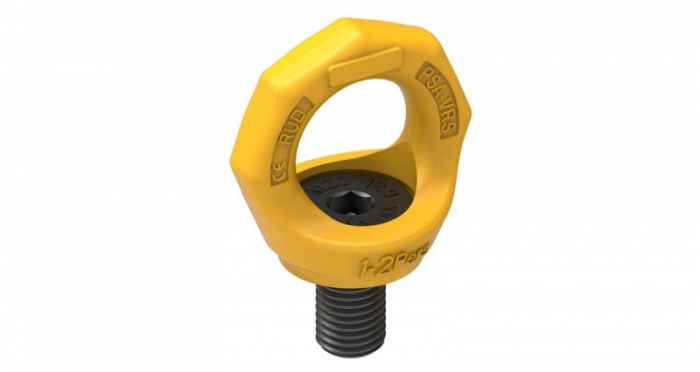

    Characteristics:

  • M12 = 1 person / M16 = 1 - 2 persons / M20 = 2 persons

  • rotating 360°

  • tested and certified by the Department PSA of DGUV Germany

  • non removable special bolt

  • according EN 795 - EN 50308 - OHSA 1926.502
