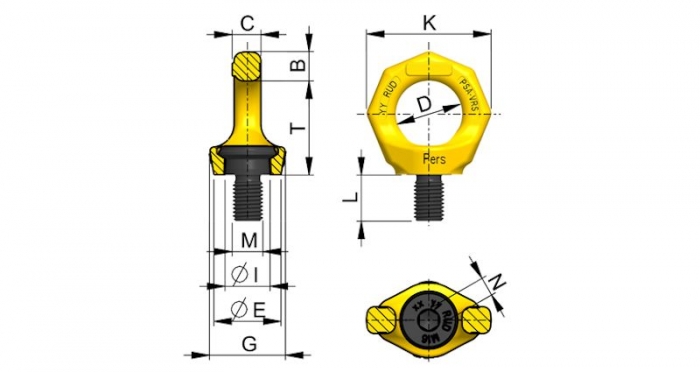

Bolt wire |
Bolt length |
Article Nº |
T inch |
B inch |
C inch |
D inch |
E inch |
G inch |
I inch |
K inch |
L inch |
N inch |
Weigth Lbs |
| 1/2"-13UNC | 23/32" | 7997103 | 1-21/32 | 9/16 |
15/32 |
1-3/16 |
1-3/16 | 1-11/32 | 3/4 | 2-3/16 | 23/32 | 5/16 | 0.44 |
| 5/8"-11UNC | 15/16 | 7998659 | 1-31/32 | 5/8 | 19/32 | 1-3/8 | 1-3/8 | 1-9/16 | 15/16 | 2-9/16 | 15/16 | 3/8 | 0.71 |
| 3/4"-10UNC | 1-3/16 | 7903367 | 2-1/4 | 3/4 | 43/64 | 1-9/16 | 1-11/16 | 2-1/8 | 1-1/8 | 2-29/32 | 1-3/16 | 1/2 | 0.31 |
| Characteristics: | |
|
|
|
|
|
|
|
|
|
