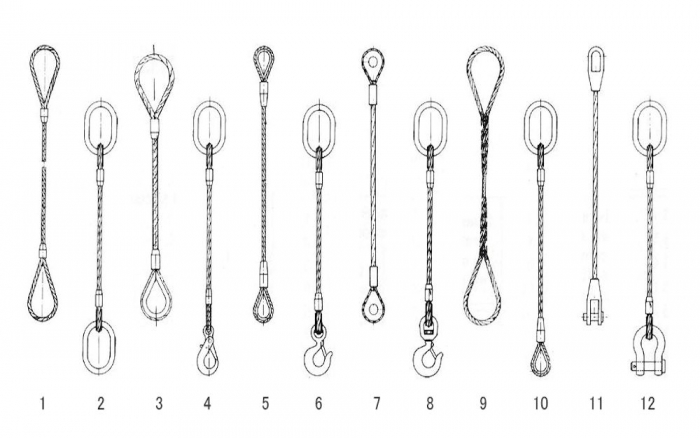

1 = soft eyes	2 = double ring
3 = soft eye + thimble eye	4 = ring + safety hook
5 = double thimble eyes	6 = ring + cobra hook
7 = double full thimble eyes	8 = ring + swivel hook
9 = double split sockets	10 = ring + thimble eye
11 = molded sockets	12 = ring + shackle



Diameter Inches	Diameter mm	WLL kg	Minimal Breaking Force MBF - kg	Length Loop A in mm
0.315	6	400	2,200	100
0.354	8	650	4,120	150
0.394	10	1,100	6,000	150
0.433	11	1,300	7,250	200
0.472	12	1,500	8,600	200
0.512	13	1,800	10,000	250
0.511	14	2,000	10.900	250
0.591	15	2,300	12,700	300
0.630	16	3,000	16,200	300
0.709	18	3,600	19,400	300
0.787	20	4,400	23,800	400
0.866	22	5,200	28,600	400
0.945	24	6,100	33,200	400
1.024	26	6,600	38,900	400
1.102	28	8,600	47,000	500
1.181	30	10,000	53,700	500
1.260	32	11,000	60,900	600
1.339	34	12,300	68,500	600
1.417	36	13,700	76,000	700
1.496	38	15,900	86,000	700
1.575	40	17,400	95,000	800
1.654	42	19,000	102,600	800
1.732	44	20,700	111,700	900
1.811	46	23,400	121,300	1,000
1.890	48	25,300	131,200	1,000
1.969	50	27,200	152,000	1,000
2.047	52	29,200	163,000	1,200
2.126	54	36,000	188,000	1,200
2.244	57	40,000	209,000	1,500
2.402	61	46,000	239,000	1,500
2.520	64	54,000	274,000	1,500
2.756	70	65,000	325,000	1,500



Length	On Request
Type of Material	On Request
According to	98/37/EC, BS EN 13414-1,  ASME B 30.9
Safety Factor	5
Conformity Statement	Included
Deviating models	On Request
