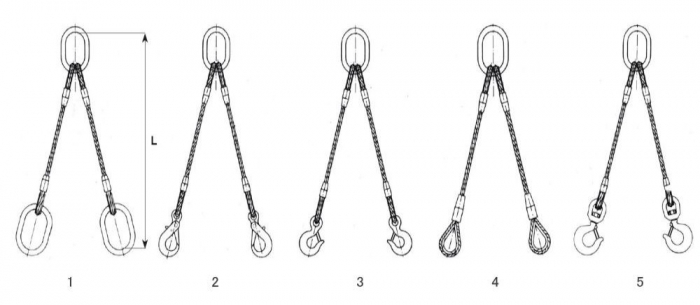

1 = toplink + double ring	2 = toplink + 2 safety hooks
3 = topling + 2 Cobra Hooks	4 = toplink + 2 thimble eyes
5 = toplink + 2 swivel hook



Diameter Inches	Diameter mm	WLL 0 - 45 kg	WLL 45 - 90 kg	Toplink L x B in mm
0.315	6	800	560	100 x 60
0.354	8	1,300	910	100 x 60
0.394	10	2,200	1,540	120 x 70
0.433	11	2,600	1,820	135 x 75
0.472	12	3,000	2,100	135 x 75
0.512	13	3,600	2,520	150 x 90
0.511	14	4,000	3,200	150 x 90
0.591	15	4,600	3,220	150 x 90
0.630	16	5,800	4,060	150 x 90
0.709	18	7,200	5,040	175 x 95
0.787	20	8,800	6,160	200 x 120
0.866	22	10,400	7,280	200 x 120
0.945	24	12,000	8,540	200 x 120
1.024	26	13,200	9,240	250 x 150
1.102	28	17,000	11,900	250 x 150
1.181	30	19,600	13,720	250 x 150
1.260	32	22,000	60,900	250 x 150
1.339	34	24,600	15,400	280 x 170
1.417	36	27,400	17,200	300 x 280
1.496	38	31,800	22,260	300 x 280
1.575	40	34,800	24,360	300 x 280
1.654	42	38,000	26,600	300 x 280
1.732	44	41,400	29,000	300 x 280
1.811	46	46,800	32,800	300 x 280
1.890	48	50,000	35,000	300 x 280
1.969	50	54,400	38,000	300 x 280



Length	On Request
Type of Material	On Request
According to	98/37/EC, BS EN 13414-1,  ASME B 30.9
Safety Factor	5
Conformity Statement	Included
Deviating models	On Request
