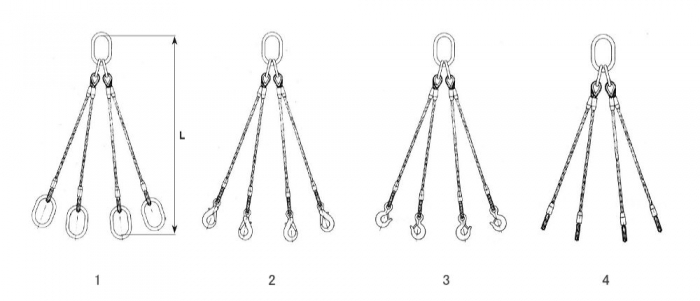

1 = toplink + 4 rings	2 = toplink + 4 safety hooks
3 = toplink + 4 Cobra Hooks	4 = toplink + 4 thimble eyes



Diameter Inches	Diameter mm	WLL 0º - 45º kg	WLL 45º - 90º kg	Toplink L x B in mm
0.315	6	1,600	840	120 x 70
0.354	8	2,600	1,360	120 x 70
0.394	10	4,400	2,300	135 x 75
0.433	11	5,200	2,700	150 x 90
0.472	12	6,000	3,100	150 x 90
0.512	13	7,200	3,780	150 x 90
0.511	14	8,000	4,200	150 x 90
0.591	15	9,200	4,830	175 x 95
0.630	16	12,000	6,300	200 x 120
0.709	18	14,400	7,560	200 x 120
0.787	20	17,600	9,240	250 x 150
0.866	22	20,000	10,920	250 x 150
0.945	24	24000	12,800	200 x 120
1.024	26	26,000	13,860	280 x 170
1.102	28	34,400	18,000	300 x 200
1.181	30	40,000	21,000	300 x 200
1.260	32	44,000	23,000	300 x 200
1.417	36	52,000	36,920	300 x 200
1.496	38	63,600	45,150	300 x 2000
1.575	40	69,600	49,400	350 x 200



Length	On Request
Type of Material	On Request
According to	98/37/EC, BS EN 13414-1,  ASME B 30.9
Safety Factor	5
Conformity Statement	Included
Deviating models	On Request
